U.S. specifications
- Voltage
- 110–120V / 60Hz
- Light source / bulb base
- E26 replaceable LED bulb
- Light source included
- Yes — complete LED bulb set included for the selected configuration
- Color temperature
- 3000K Warm White
- Brightness
- Model A ∅ 52″ x H 11.8″: 3,600 lm; Model B ∅ 52″ x H 11.8″: 3,600 lm; Model C ∅ 52″ x H 11.8″: 3,600 lm
- Control
- Handheld remote included; standard wall switch is master power only
- Fan speeds
- 3 speeds — Low / Medium / High
- Nominal airflow by speed
- 52 in: Low 2,200 CFM; Medium 3,800 CFM; High 5,500 CFM
- Physical mounting
- Ceiling-mounted fan fixture
- Electrical connection
- Hardwired
- Location
- IP20
Brightness is the nominal catalog specification for the lighting module at the selected size. Size, finish and other available choices remain as listed in the selector.
Fan performance and control
- Blade span / overall diameter
- 52 in
- Motor
- DC variable-frequency motor
- Fan speeds
- 3 speeds — Low / Medium / High
- Control
- Handheld remote included; standard wall switch is master power only
- Reverse mode
- Yes — reversible direction controlled by the included remote
- Nominal airflow by speed
- 52 in: Low 2,200 CFM; Medium 3,800 CFM; High 5,500 CFM
- Noise rating
- No numerical laboratory dB rating is currently published
- Installation support
- Hardwired; fan-rated junction box and suitable structural support required
- Sloped ceiling
- Confirm a compatible downrod or slope adapter before ordering for an angled ceiling
Fan motor watts describe electrical input, not airflow and not lighting brightness. Use the lumen value in the lighting specification to compare brightness. The included remote is the normal operating control; a standard in-wall switch should be used only to provide or disconnect master power.
Nominal airflow values are size-based Breeze & Beam catalog specifications for comparison. They are not represented as DOE laboratory certification data unless model-specific test documentation is shown.
Form, material, and placement
Palm Whisper Tropical Ceiling Fan Light translates modern minimal styling into a ceiling-mounted format. The composition pairs combined light-and-airflow form with metal, glass, copper, with available options shown at variant level.
Consider Palm Whisper Tropical Ceiling Fan Light for living room when the room needs a defined overhead element. Its combined light-and-airflow form is easiest to evaluate after mapping both the visible footprint and service clearance.
At-a-glance data
- Product type
- Ceiling Fan Light
- Materials
- Metal, glass, copper
- Dimensions
- ∅ 52″ x H 11.8″; Model A ∅ 52″ x H 11.8″
- Finish and color
- Finishes: Walnut Color; Lampshade Finishes: White, Beige; Walnut Grain Color & Black
- Light color
- 3000K Warm White
- Mounting
- Ceiling-mounted fan fixture
- Power source
- Hardwired
- Bulb base
- E26
- Location rating
- IP20
- U.S. electrical preparation
- 110–120V / 60Hz
Measure before ordering
The recorded dimensions for Palm Whisper Tropical Ceiling Fan Light are ∅ 52″ x H 11.8″; Model A ∅ 52″ x H 11.8″. The catalog currently contains 3 purchasable configurations. Available selection data is Size: Model A ∅ 52″ x H 11.8″; Color: Walnut Grain Color & Black. Match every option on the same variant line before ordering; images may show more than one configuration.
- Size: Model A ∅ 52″ x H 11.8″
- Color: Walnut Grain Color & Black

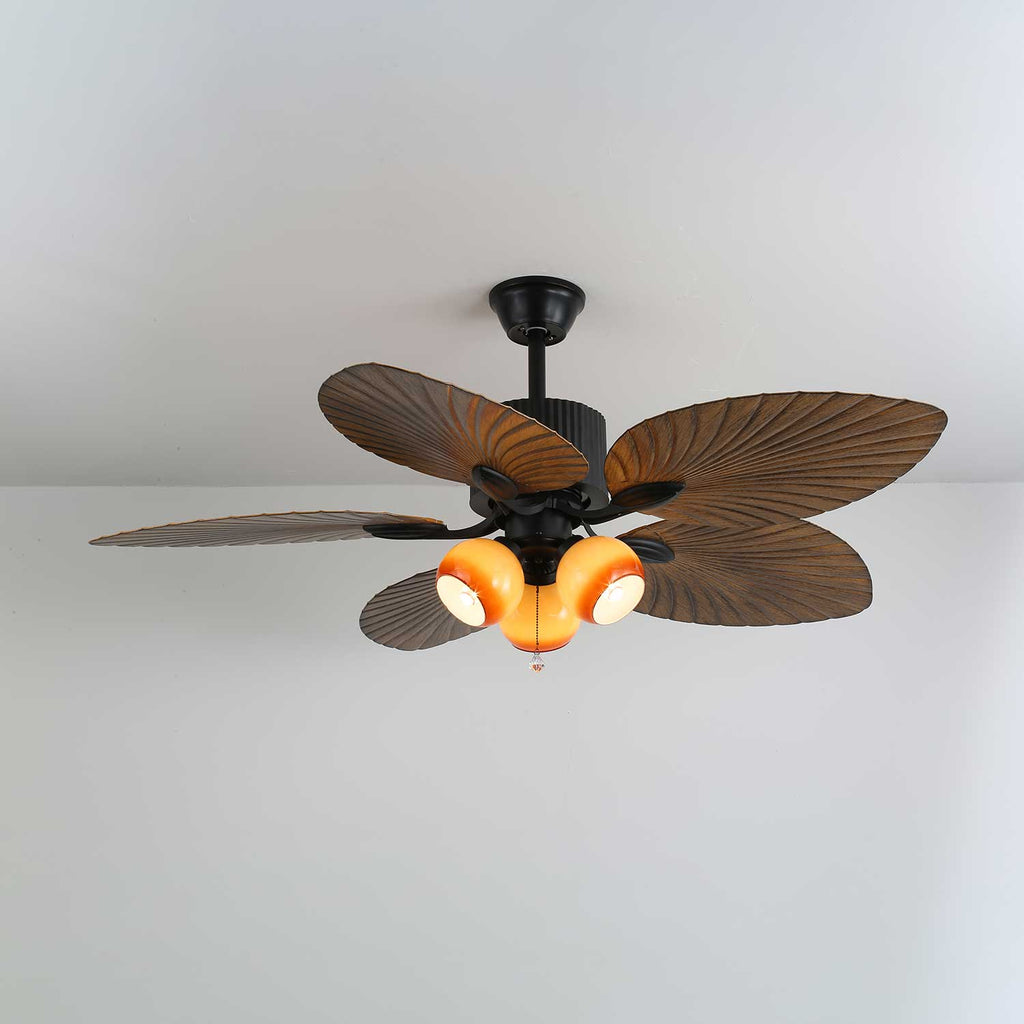

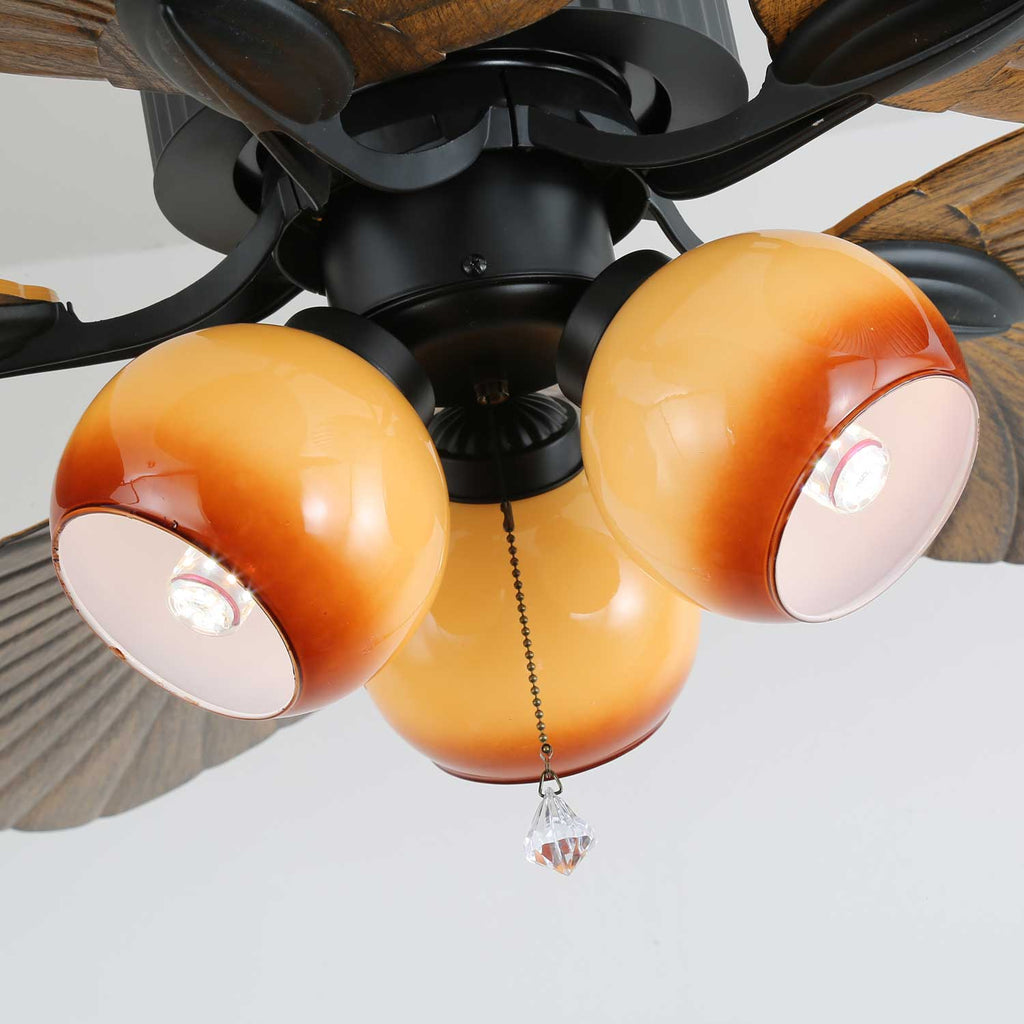

The gallery contains 15 product images. Use images to understand form and finish, but use the written dimensions and selected option values for ordering.
Professional installation guidance
The U.S. electrical configuration for Palm Whisper Tropical Ceiling Fan Light is 110–120V / 60Hz. The standard U.S. configuration uses Ceiling-mounted fan fixture and a hardwired electrical connection; lighting details include light source: E26 replaceable LED bulb; color temperature: 3000K Warm White; brightness: see the selected-size specification above; control: Handheld remote included; standard wall switch is master power only. A professional installer must confirm that the selected option, wiring method, dimmer or control, and ceiling conditions are compatible.
Breeze & Beam origin
Twenty years of Zhongshan lighting experience shape the Breeze & Beam edit. With Palm Whisper Tropical Ceiling Fan Light, attention goes to how metal, glass, copper frame the combined light-and-airflow form and how the available choices affect the final ceiling composition.
What’s included
- Fixture body and all shades or diffusers shown for the selected configuration
- A complete set of E26 LED bulbs matched to the selected configuration
- Ceiling mounting hardware
- Receiver and handheld remote control
- Installation instructions
The in-wall switch, junction box and site wiring are supplied by the installation site. Use a qualified installer and follow the wattage marking on each socket when replacing a bulb.
