U.S. specifications
- Voltage
- 110–120V / 60Hz
- Light source / bulb base
- E26 replaceable LED bulb
- Light source included
- Yes — complete LED bulb set included for the selected configuration
- Color temperature
- 3000K Warm White
- Brightness
- Model A ∅ 32″ x H 11.8″: 2,400 lm; Model B ∅ 32″ x H 11.8″: 2,400 lm; Model C ∅ 32″ x H 11.8″: 2,400 lm; Model D ∅ 32″ x H 11.8″: 2,400 lm; Model E ∅ 32″ x H 11.8″: 2,400 lm; Model F ∅ 32″ x H 11.8″: 2,400 lm; Model G ∅ 32″ x H 11.8″: 2,400 lm; Model H ∅ 32″ x H 11.8″: 2,400 lm
- Control
- Handheld remote included; standard wall switch is master power only
- Fan speeds
- 3 speeds — Low / Medium / High
- Nominal airflow by speed
- 32 in: Low 1,300 CFM; Medium 2,200 CFM; High 3,200 CFM
- Physical mounting
- Ceiling-mounted fan fixture
- Electrical connection
- Hardwired
- Location
- IP20
Brightness is the nominal catalog specification for the lighting module at the selected size. Size, finish and other available choices remain as listed in the selector.
Fan performance and control
- Blade span / overall diameter
- 32 in
- Motor
- DC variable-frequency motor
- Fan speeds
- 3 speeds — Low / Medium / High
- Control
- Handheld remote included; standard wall switch is master power only
- Reverse mode
- Yes — reversible direction controlled by the included remote
- Nominal airflow by speed
- 32 in: Low 1,300 CFM; Medium 2,200 CFM; High 3,200 CFM
- Noise rating
- No numerical laboratory dB rating is currently published
- Installation support
- Hardwired; fan-rated junction box and suitable structural support required
- Sloped ceiling
- Confirm a compatible downrod or slope adapter before ordering for an angled ceiling
Fan motor watts describe electrical input, not airflow and not lighting brightness. Use the lumen value in the lighting specification to compare brightness. The included remote is the normal operating control; a standard in-wall switch should be used only to provide or disconnect master power.
Nominal airflow values are size-based Breeze & Beam catalog specifications for comparison. They are not represented as DOE laboratory certification data unless model-specific test documentation is shown.
The design idea
For Palm Cove Breeze Ceiling Fan Light, scale and silhouette do most of the design work. The fan profile body uses metal, glass, copper to support combined light-and-airflow form over bedroom and home office.
For bedroom and home office, plan Palm Cove Breeze Ceiling Fan Light from the centerline of the activity zone, not simply the center of the ceiling. That approach gives the combined light-and-airflow form a clearer relationship to the space below.
Current specification record
| Product type | Ceiling Fan Light |
|---|---|
| Materials | Metal, glass, copper |
| Dimensions | ∅ 32″ x H 11.8″; Model A ∅ 32″ x H 11.8″ |
| Finish and color | Finishes: Walnut Wood Grain, Black |
| Light color | 3000K Warm White |
| Power | Wattage is not listed here. Contact customer service to confirm motor and lighting wattage for your selected configuration. |
| Mounting | Ceiling-mounted fan fixture |
| Power source | Hardwired |
| Bulb base | E26 |
| Location rating | IP20 |
| U.S. electrical preparation | 110–120V / 60Hz |
Configuration checklist
The recorded dimensions for Palm Cove Breeze Ceiling Fan Light are ∅ 32″ x H 11.8″; Model A ∅ 32″ x H 11.8″. The catalog currently contains 8 purchasable configurations. Available selection data is Size: Model A ∅ 32″ x H 11.8″. Match every option on the same variant line before ordering; images may show more than one configuration.
- Size: Model A ∅ 32″ x H 11.8″

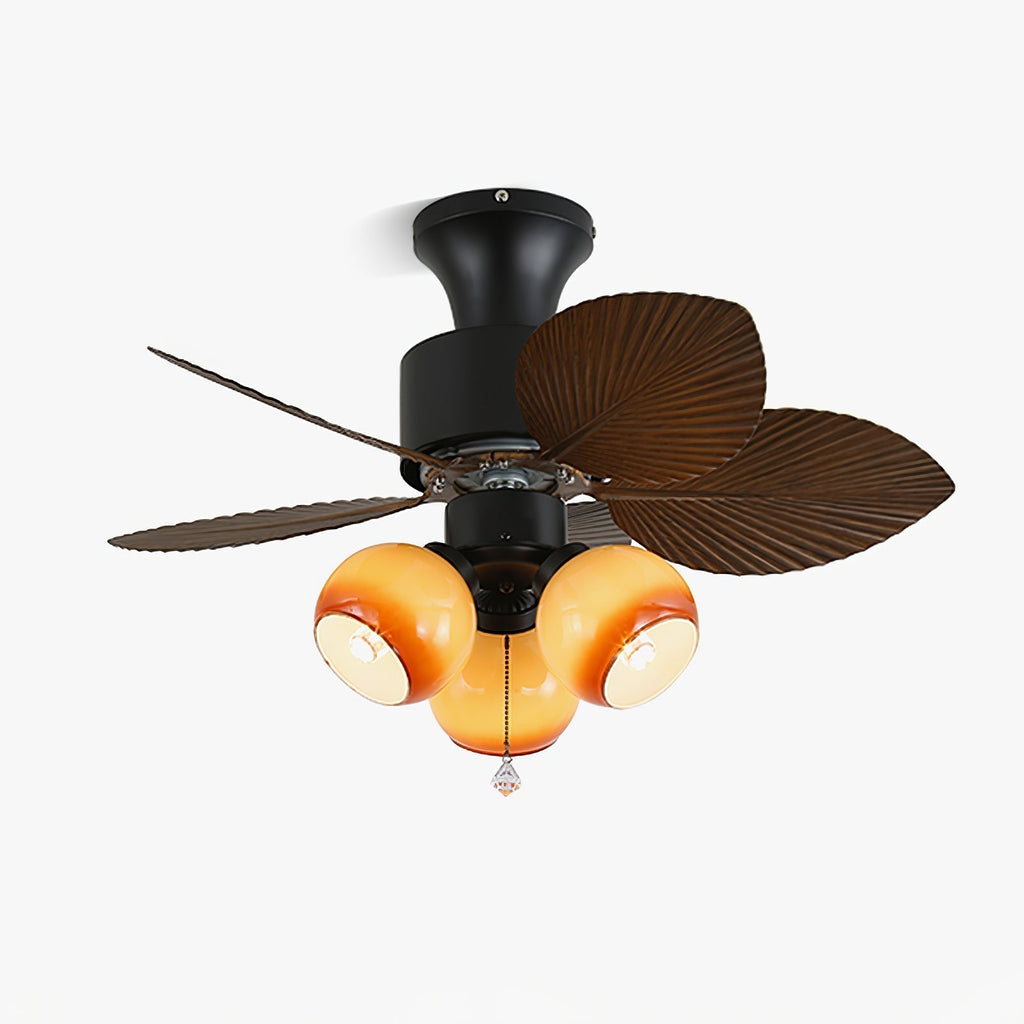

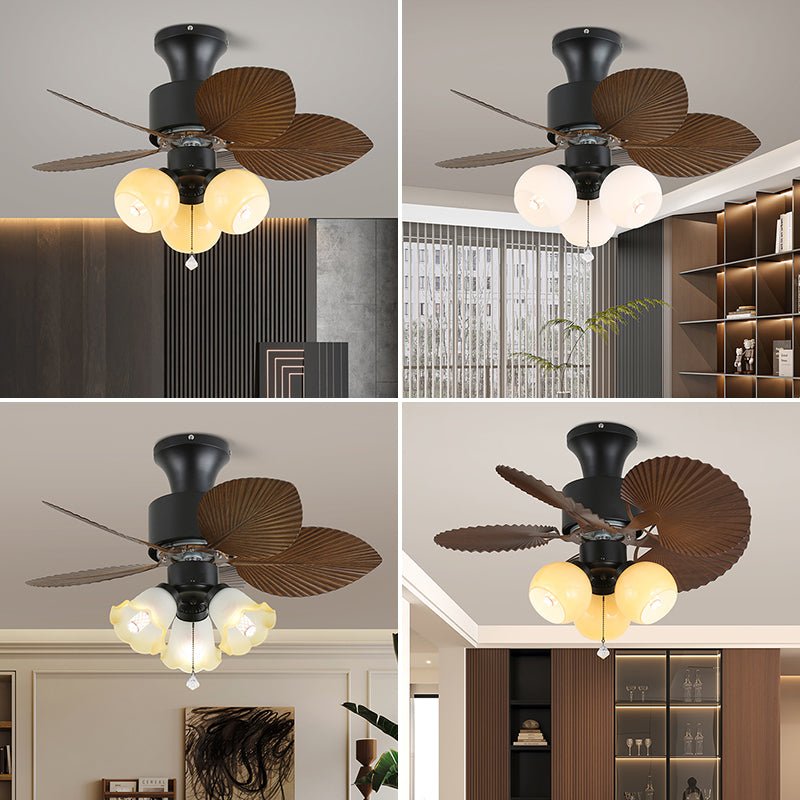

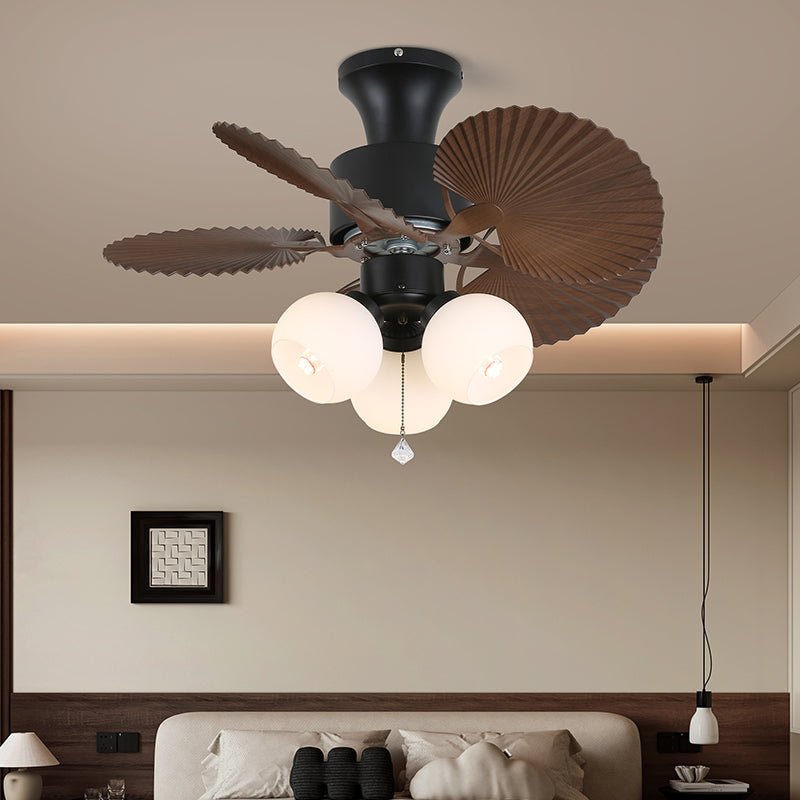

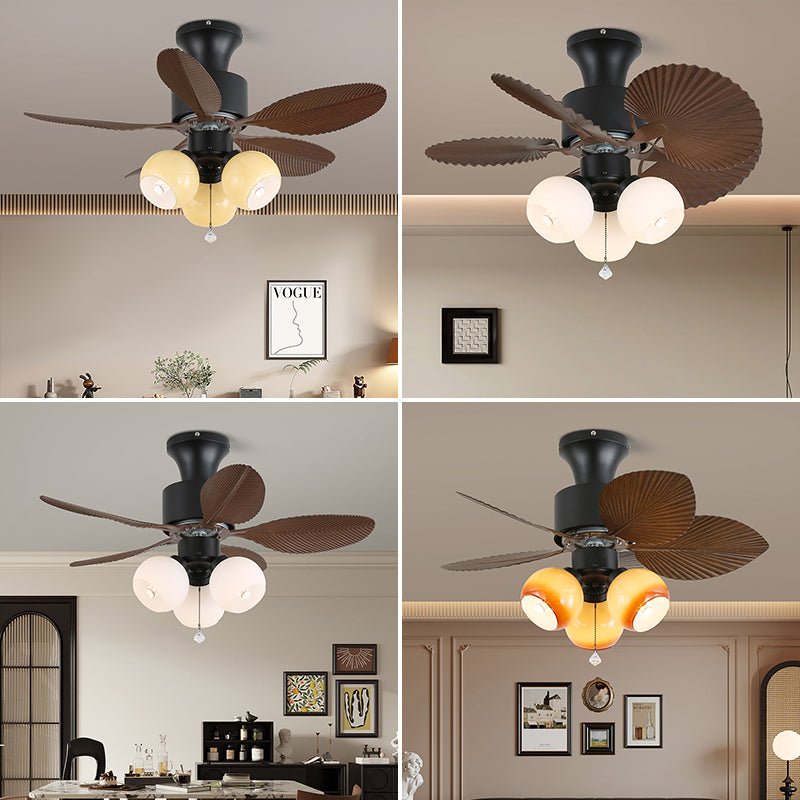

The gallery contains 19 product images. Use images to understand form and finish, but use the written dimensions and selected option values for ordering.
110–120V / 60Hz preparation
For the U.S. market, the intended supply for Palm Cove Breeze Ceiling Fan Light is 110–120V / 60Hz. The standard U.S. configuration uses Ceiling-mounted fan fixture and a hardwired electrical connection; lighting details include light source: E26 replaceable LED bulb; color temperature: 3000K Warm White; brightness: see the selected-size specification above; control: Handheld remote included; standard wall switch is master power only. Do not select wiring accessories or controls until the exact product variant and installation site have been reviewed.
Made for the fifth wall
Breeze & Beam brings a two-decade Zhongshan manufacturing perspective to ceiling lighting. Palm Cove Breeze Ceiling Fan Light reflects that perspective through metal, glass, copper, a fan profile body, and a clearly defined combined light-and-airflow form.
What’s included
- Fixture body and all shades or diffusers shown for the selected configuration
- A complete set of E26 LED bulbs matched to the selected configuration
- Ceiling mounting hardware
- Receiver and handheld remote control
- Installation instructions
The in-wall switch, junction box and site wiring are supplied by the installation site. Use a qualified installer and follow the wattage marking on each socket when replacing a bulb.
