U.S. specifications
- Voltage
- 110–120V / 60Hz
- Light source / bulb base
- Integrated LED
- Light source included
- Yes — integrated LED module included
- Color temperature
- 3000K Warm White
- Brightness
- ∅ 42″ x H 11″: 3,000 lm; ∅ 48″ x H 11″: 3,600 lm
- Control

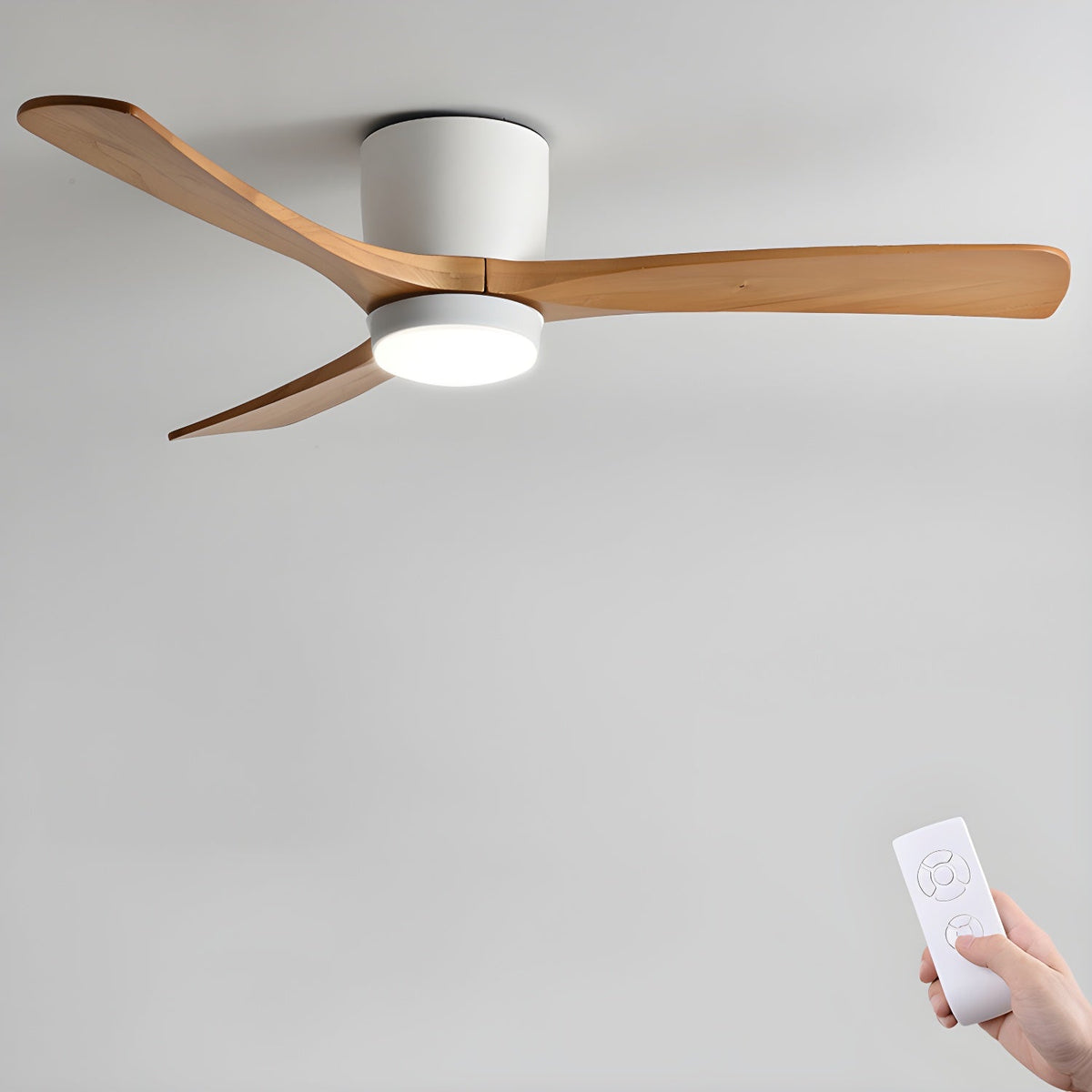

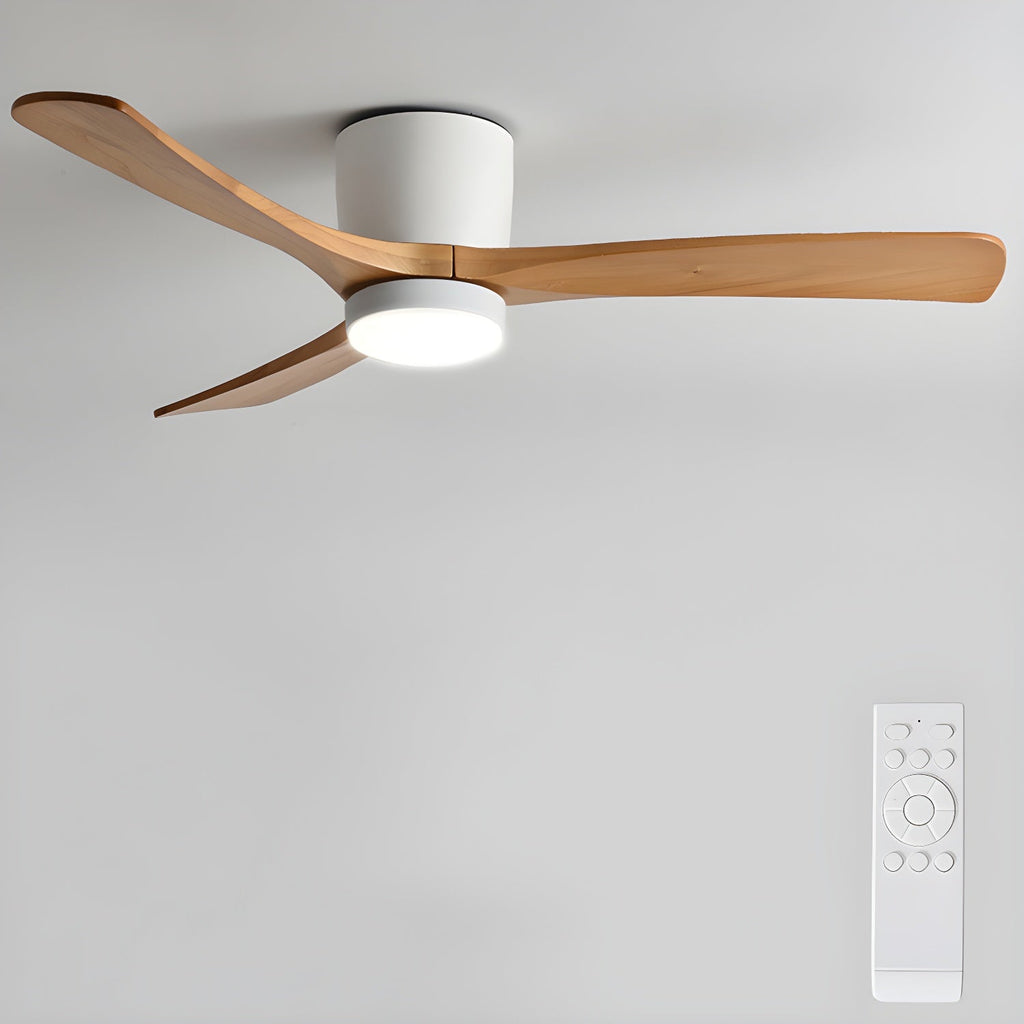

- Handheld remote included; standard wall switch is master power only
- Fan speeds
- 3 speeds — Low / Medium / High
- Nominal airflow by speed
- 42 in: Low 1,900 CFM; Medium 3,300 CFM; High 4,800 CFM; 48 in: Low 2,200 CFM; Medium 3,800 CFM; High 5,500 CFM
- Physical mounting
- Ceiling-mounted fan fixture
- Electrical connection
- Hardwired
- Location
- IP20
Brightness is the nominal catalog specification for the lighting module at the selected size. Size, finish and other available choices remain as listed in the selector.
Fan performance and control
- Blade span / overall diameter
- 42 / 48 in — select by variant

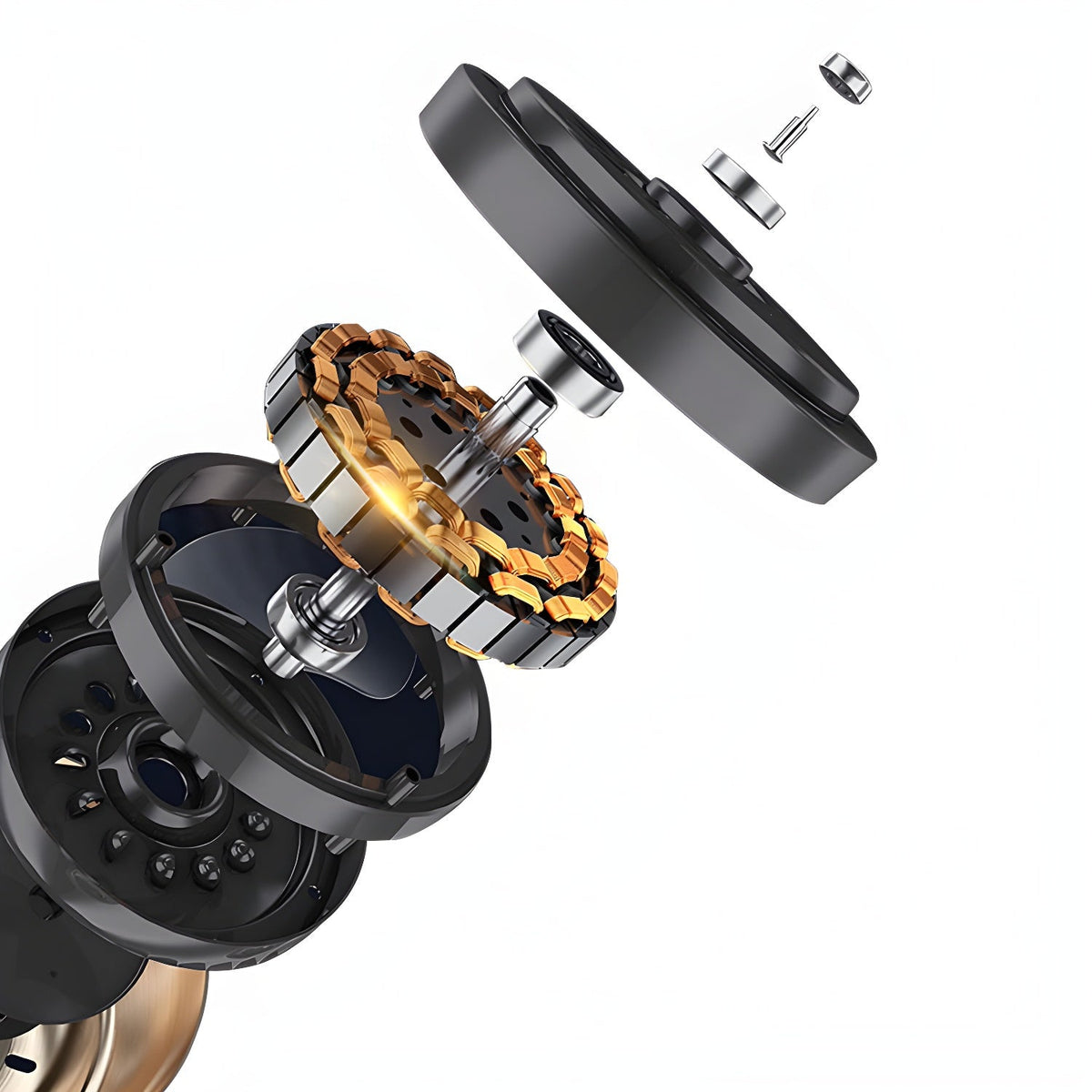

- Motor
- DC variable-frequency motor
- Fan speeds
- 3 speeds — Low / Medium / High
- Control
- Handheld remote included; standard wall switch is master power only
- Reverse mode
- Yes — reversible direction controlled by the included remote
- Nominal airflow by speed
- 42 in: Low 1,900 CFM; Medium 3,300 CFM; High 4,800 CFM; 48 in: Low 2,200 CFM; Medium 3,800 CFM; High 5,500 CFM
- Noise rating
- No numerical laboratory dB rating is currently published
- Installation support
- Hardwired; fan-rated junction box and suitable structural support required
- Sloped ceiling
- Confirm a compatible downrod or slope adapter before ordering for an angled ceiling
Fan motor watts describe electrical input, not airflow and not lighting brightness. Use the lumen value in the lighting specification to compare brightness. The included remote is the normal operating control; a standard in-wall switch should be used only to provide or disconnect master power.
Nominal airflow values are size-based Breeze & Beam catalog specifications for comparison. They are not represented as DOE laboratory certification data unless model-specific test documentation is shown.
Form, material, and placement
A ceiling fixture has to work from every common viewpoint in a room. Nordic Wooden 42"/48" Ceiling Fan Light answers that need through wood-led material expression, fan profile scale, and a material mix led by metal, wooden, acrylic, copper.

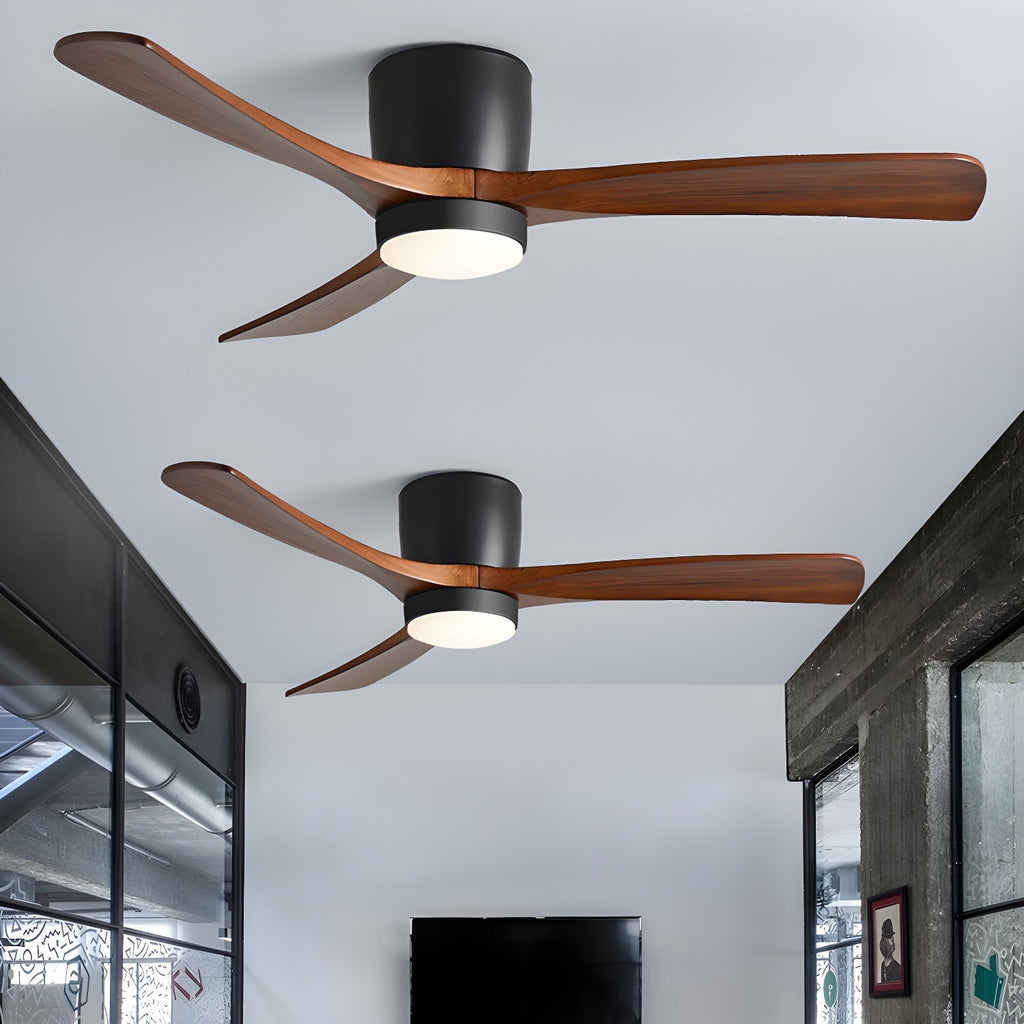

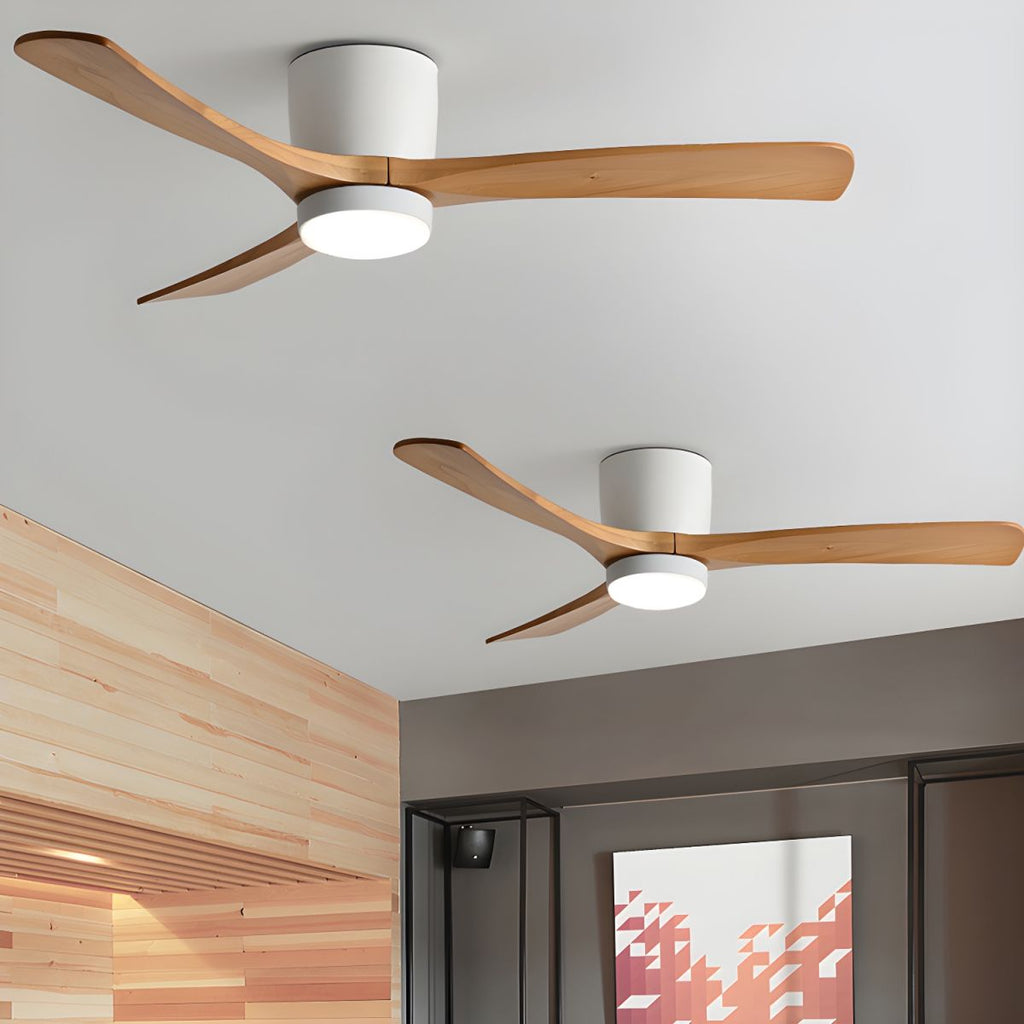

The recommended context for Nordic Wooden 42"/48" Ceiling Fan Light is living room. Before choosing a size, consider sightlines from the doorway and the amount of open ceiling around the wood-led material expression.
At-a-glance data
- Product type: Ceiling Fan Light
- Materials: Metal, Wooden, acrylic, copper
- Dimensions: ∅ 42″ x H 11″; ∅ 48″ x H 11″; 42"

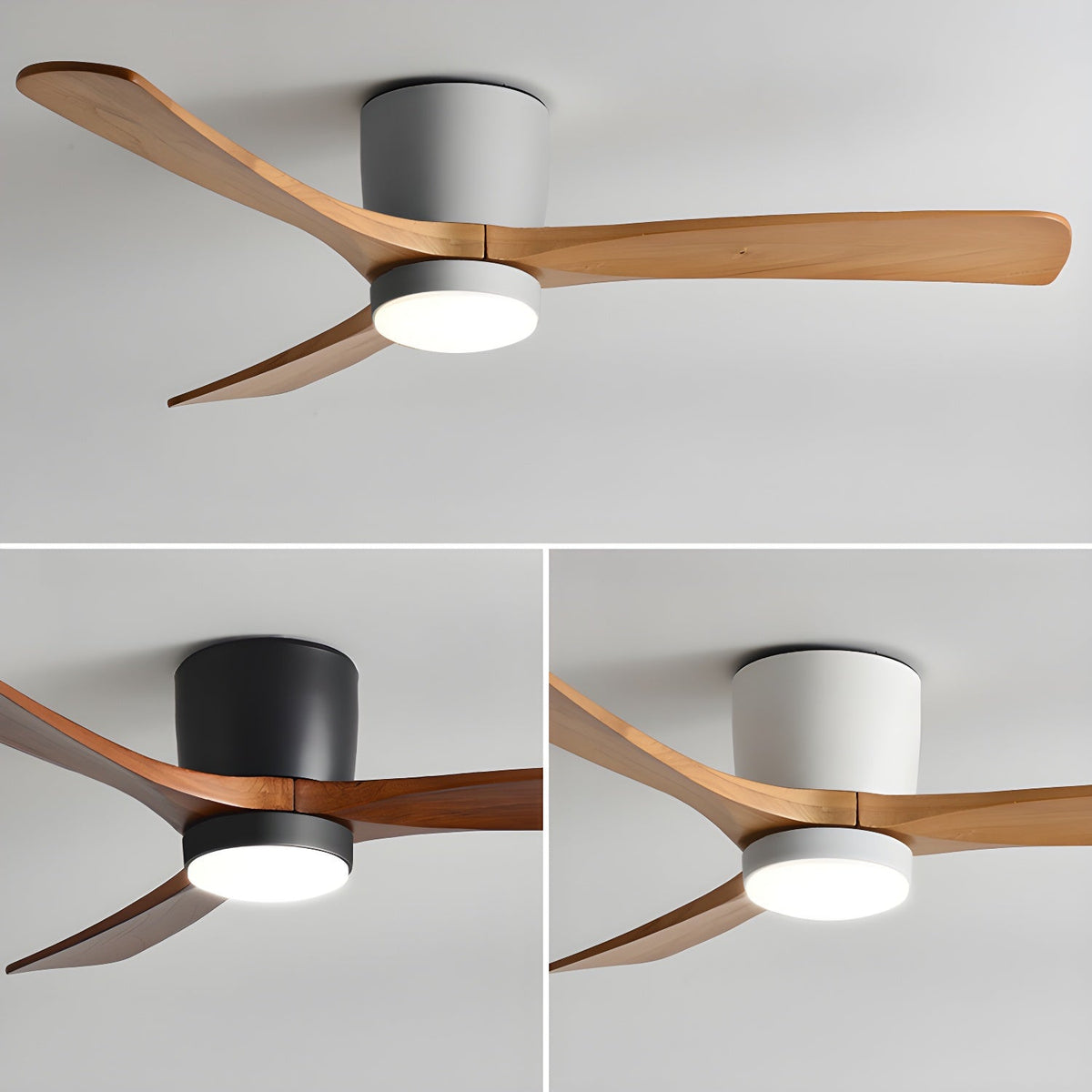

- Finish and color: Body Finishes: Walnut Wood, Nature Wood, White, Black, Grey; Lampshade Finishes: White; Black & Walnut Wood
- Light color: 3000K Warm White
- Mounting: Ceiling-mounted fan fixture
- Power source: Hardwired
- Location rating: IP20
- U.S. electrical preparation: 110–120V / 60Hz
Measure before ordering
The recorded dimensions for Nordic Wooden 42"/48" Ceiling Fan Light are ∅ 42″ x H 11″; ∅ 48″ x H 11″; 42". The catalog currently contains 6 purchasable configurations. Available selection data is Size: ∅ 42″ x H 11″; Color: Black & Walnut Wood; color temperature: 3000K Warm White; brightness: see the selected-size specification above; control: Handheld remote included; standard wall switch is master power only. A professional installer must confirm that the selected option, wiring method, dimmer or control, and ceiling conditions are compatible.
Breeze & Beam origin
Twenty years of Zhongshan lighting experience shape the Breeze & Beam edit. With Nordic Wooden 42"/48" Ceiling Fan Light, attention goes to how metal, wooden, acrylic, copper frame the wood-led material expression and how the available choices affect the final ceiling composition.
What’s included
- Fixture body and all shades or diffusers shown for the selected configuration
- Integrated LED module matched to the stated default lumen output
- Ceiling mounting hardware
- Receiver and handheld remote control
- Installation instructions
The in-wall switch, junction box and site wiring are supplied by the installation site. The integrated LED module is not a standard user-replaceable bulb; service should be performed by a qualified technician.
